• Washington Irving school Sullivanesque Pier Capital

    Hope to finally finish this Sullivanesque pier capital to-morrow, the clay is getting pretty firm despite being covered with plastic and spritzed with water, so it needs to be finished now.
    It’s amazing how much time this design takes, probably twice what other models I’ve done have taken, there’s a lot of detail packed in on the surface!
    I still have 5 of the 8 “squares” along the sides- the 4 on the right and the bottom left one to finish refining and cleaning up and then it’s done.



    Now that the model is done it is drying out.

    There is an 11 minute long timelapse video showing the whole modelling process on this start to finish over 3 months;



  • Washington Irving Louis Sullivan Sullivanesque pier capital model progress

    Working now on final cleaning up, detailing and refining, I haven’t had time to work on it the last couple of weeks as other projects and things needed my attention.

    I expect it will take quite a few more hours to finally get this done, the clay is getting firmer despite misting it with water and keeping it covered with plastic, so it needs to be finished as soon as I can get it done!

  • James W Scoville building terracotta

    This James W Scoville building Elmslie “Sullivanesque” sculpture is now out of the kiln, it is still about 200 degrees and had to be handled with gloves, it turned out perfect!


    One can see the color change in photos from the previous dry/unfired state and now that it’s been fired to a little over 2,079 degrees, actually cone 2 tipped because I added a 15 minute “hold” at the set temperature, but because of the “heat work” it went a little higher, but the result is better and the color is nice and even top to bottom, whereas in the past the very bottom of large pieces like this would turn out slightly lighter due to slightly lower temperatures near the floor of the kiln.

    https://www.urbansculptures.com/cart/product/sullivanesque-panel-after-james-w-scoville-chicago-nr-ls-2/



    A Virginia museum  has an original, that one still has the old grey paint slathered all over it but the red clay underneath can be seen.

    Someone has one they have been trying to sell for quite a while for $5,000 !!

    https://www.vmfa.museum/piction/6027262-7945338/

    Exterior Ornament from the James W. Scoville Building, Chicago (Primary Title)
    Dankmar Adler, 1844-1900 (Artist)
    Louis Sullivan, American, 1856 – 1924 (Artist)
    Northwestern Terra Cotta Co. (Artist)
    probably modeled by, Kristian Schneider (Modeler)
    Date:
    1884-1885

  • James W Scoville, George Elmsley/Sullivanesque design first pressed clay

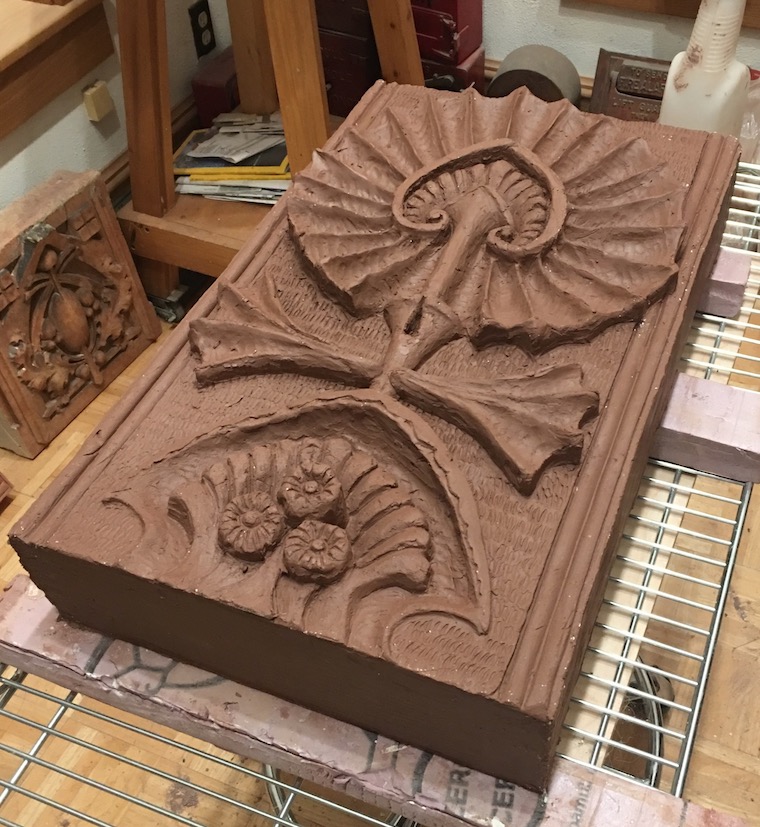

    The first hand-pressed clay sculpture is finished and drying now before it can be kiln fired.

    Once this is fired in the kiln I will have an exact size and weight and a firm price for these signed, numbered and dated works reproducing this historic George Grant Elmslie/Louis Sullivan 1884 Chicago design featuring a  styled webbed lotus.

    The design is an early work by these men and  it dates to the  foundation of what has become known as the “Sullivanesque” style of architectural ornament.



    The James W Scoville building was demolished in the 1970s, many of the original artifacts were salvaged, most are in private collections while a few are in museums such as the Virginia Museum of Fine Arts where it appears in photos on their web site still sporting it’s old battleship grey paint that was slathered on the original facade over the rich red brick and terracotta.

    Now instead of hoping one of these might come up at an auction, and only finding ONE when you might really need a pair for a project, and instead of paying upwards of $5,000 for one of those, these authentic hand-pressed kiln fired  sculptures can be had new, in any quantity, made exactly the same way the originals were made in the 1880s- one can purchase these from me at $349 delivered (48 states only)

    As can be seen in the bottom photo, these really ARE made exactly like the originals- including the typical webbed compartments in the back- the portion that was embedded into the wall.

    The webbing gives considerable structural strength and stability, and when kiln fired to almost 2,100 degrees F it becomes vitrified and has less porosity than even modern hard brick. As a result these can be built into a brick or stone wall or displayed in the garden too.

    These will probably be around 50 pounds in weight as this one took 60 pounds of clay.





  • First pressing of the James Scoville “Sullivanesque” terracotta panel

    I pressed the first  LS2 panel today,  it took 60 pounds of clay,  the sculpture will need to firm up a little and dry a little before I can finish cleaning up and refining the surface details.

    It takes about 2- 3 weeks of slow, careful drying of pressed clay sculptures of this size before they can be kiln fired.

    The firing process in an electric kiln takes approximately 36 hours and the high quality clay I use is fired to what is known as “Cone 1”- about 2,100 degrees F which vitrifies it nicely to become harder and less porous than standard hard bricks are.

    Once the sculpture was removed from the plaster mold as shown, I have to spend considerable time going over every milimeter of the surface to model-in any missing details, sharpen edges, eliminate any surface defects, mold seams etc.

    Each is a signed, numbered and dated work of art.



    First pressed panel

    A timelapse video of the whole process is here;

  • Washington Irving school, Hammond Ind W1 pier capital model started

    Washington Irving school pier capital
    Starting the model of the W1 pier capital

    To-day I started the process on the Washington Irving school, once at 4727 Pine St., Hammond Ind W1 pier capital model.

    I happened to find photos of this interesting 1936 George Elmslie/Louis Sullivan “Sullivanesque” style design at the City Museum in St Louis and decided to create a model of it. I was able to scale the size of the original terracotta artifacts to about 20″ square.  Though the originals were actually about 20″ deep embedded into the wall as well as projecting out from the wall about 5″,  I needed to modify that original configuration to a more practical one for how my clients would likely use it- hanging ON the wall, or embedded 3-4″ into a brick or stone wall, so with that end goal in mind this model is designed to do both as it will be a nominal 4″ deep.

    The original pier capitals projected out from the face of the brick facade by about 5″, as a result the design on the fronts of the capitals wrapped around on the two sides, since doing that configuration would mean making my model 5″ deeper yet (9″ total) it would make it a less than useful design for how it would be used in a non pier capital display, so I will not wrap the design around the sides beyond possibly the smallest amount on the corners.

    George Grant Elmslie & William Hutton- architects, and the Midland terracotta  Co with modeller Albert Fritz are said to have executed the original terracotta artifacts for the school in 1936, the school was demolished in 2003.

    As the description on a placard at the City Museum says- this is an outstanding example of the Louis Sullivan style of architectural ornament. The Art Deco inspired chevron or “V” is surrounded by thistle leaves and is sprouting leaves of a plant or bud of a flower. The flower which made up of seeds emerges from the plant stalk.

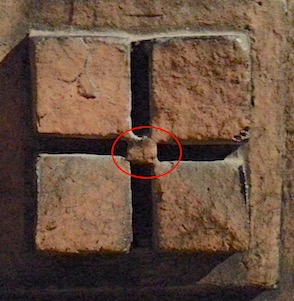

    In looking at the design itself, I noticed this curiosity which I circled in red;

    The modeller, said to be Fritz Albert, obviously left that little square of material in the center of both larger squares, in actual modelling practice the easiest way to scribe or cut those vertical and horizontal cross lines would be to make one motion top to bottom and left to right with a tool, but Fritz didn’t do that, instead, he made four cuts to leave that little center intact, the question is why?

    It’s almost as if it’s a deliberate miniature version of one of the four larger squares, but since the Elmslie/Sullivanesque designs were all based on styled organic plant forms and geometric shapes, it may be the four squares and center square are an Art Deco inspired styled four petal flower and bud.

    Since none of those involved are alive to ask, we can only guess, but it makes sense.

  • James Scoville Elmslie 1884 “Sullivanesque” mold

    The plaster-piece mold for this is done, waiting for the last section to set before taking it apart, and finishing up the last segment of a time-lapse video of it.
    It took 125# of plaster and some 7 gallons of water, about half of that water will evaporate out.
    It will be probably 2 weeks with fans blowing on it to dry it out enough to use for pressing the clay into.
    This is exactly how the working molds were made for all of the Elmslie “Sullivaesque” terracotta, and all of the similar architectural terracotta as well.
    About the biggest difference between then and now is only in my using a rubber positive copy instead of taking this plaster mold directly off the original clay model. With the rubber positive I could make additional or replacement molds from that whereas the clay original master is typically destroyed in the process.

    Back in the old days these kinds of designs were typically custom made for each building job, so they tended to only need a few of each, a dozen maybe. If they made terracotta cornices and windowsills, these were typically made by extruding the clay thru a die under mechanical pressure for small ones, for larger ones they used a system of running a template along the clay which was the same way they did the elaborate plaster ceiling crown moldings- shaped in place using wood runner strips and templates.

    Elmslie Scoville design mold
    Elmslie Scoville design mold work in progress



    Elmslie Scoville design mold
    Elmslie Scoville design mold completed.



    Elmslie Scoville design mold completed
  • Two new models in the works, Scoville lunette and Washington Irving school pier capital W-1

    I printed out the two full sized reference images I need for the two planned models, a tape measure opened to 24″ is for visually scaling the sizes in the image.

    Sullivan Elmslie design

    The one on the right is  a W-1 pier capital design from the Washington Irving school, Hammond Indiana, the one on the left is a lunette design from the James Scoville building in Chicago.

    The Scoville lunette is from an assembly of two that were sold at an auction outfit for some $15,000, while the pier capital from the 1936 Hammond Indiana school was designed by George Grant Elmslie and William Hutton in the Sullivanesque style by Louis Sullivan. The school was demolished in 2003 and this particulat artifact resides at the city museum in St Louis. I found some great photos of it that were taken by a photographer on a photo sharing site, after I inquired about the artifact’s dimensions he very generously uploaded 109 photos to an album for me to download and see, the 109 photos were all taken of artifacts in the city museum’s collection of Elmslie/Sullivanesque artifacts and others, a real treasure trove and there’s other designs I like that I may also make models of at a later date.

    The pier capital will require a little thought as it was originally a 20″ cube, with all but about 5″ of it embedded into the brick wall, the sides of it that were visible had the same triangular designs as the face does, so that presents  a couple of issues to decide on, for the interior cast stone  the casts dont need to be  deep as they would hang ON the wall, but I plan to do these in terracotta and those could be embedded INTO a wall, so if I retain the original configuration of the sides having a design instead of being flat, then I would have to make this considerably deeper- say 7-8″ deep so about 4-5″  can project out while 3-4″ would be embedded, we’ll see what I decide on that, meanwhile I will probably start the Scoville Lunette model first.

  • Louis Sullivan, Elmslie, Sullivanesque terracotta

    As I look around in google  and flickr’s images, there’s certainly no lack of a large variety of Sullivan & Elmslie designed architectural terracotta, both pictured on building facades as well as stripped-off artifacts such as those found at the City Museum in St Louis from demolitions.

    As I find interesting designs that I like and think will sell, I’ll be working on more models of these unique and interesting designs.

    I’ve already identified at least two pieces I want to model next, the first one was from the same James Scoville building as the recently finished design with the webbed lotus leaf design.

    The original shown below was sold at an auction site a few years ago for a whopping $11,250 plus the usual buyer’s premium which tends to add about another 20% and sales tax on top which brought the final price on this to an insane $15,000;





    I’ll probably work on developing the design and starting the model of the main section of the above in the next 2-3 weeks, I may make the side pieces as well since it’s MUCH easier to make them and have them fit properly if they are done together, it would take 10 different uniquely shaped moldings for the surround, but they were nothing but flat blocks with a half-round design on the surface acting as a nice visual border.

    Probably when it’s done in fired red terracotta the pricing for each main motif sans the borders will run around $325, but it will be available in interior cast stone as well. The borders will be modelled and stored away in case a client wants them, I won’t automatically just make molds of those as there may not be any interest in the border pieces.



    The other design I liked is at the City Museum in St Louis MO., I once went to St Louis to visit a friend of mine there, and to exhibit at a dog show sponsored by Purina, my hotel was some distance from the show grounds on the Purina property, but I visited St Louis.

    So this is a pier capital from the Washington Irving public  school that was demolished in Indiana, it was about 20″ square, with an interesting repeated design. I’ll be starting  a  model of this soon as well. Probably when it’s done in fired red terracotta the pricing will run around $325, but it will be available in interior cast stone as well.





  • Master mold for the Elmslie/Sullivanesque James W Scoville building design

    With the plaster backing done for the rubber positive I made yesterday, I removed the assembly from the rubber mold. Once the plaster backing on this master positive is soaped up well, I can make the plaster piece-mold of this for pressing the terracotta into, The piece mold will be made in at least 5 pieces, most likely about 8 pieces.
    It won’t happen very soon as I used up the very last bag of pottery plaster I had on hand and I’ll have to order more along with some other materials and I need some more clay, but I don’t want to order clay when it’s below freezing, so I may order the clay in the spring and order the plaster and other stuff I need now- soon!



  • Model from the James W. Scoville, Adler, Sullivan, Elmslie Chicago building

    I’ve begun the process last night to take my design  towards making it in hand-pressed kiln fired terracotta, that requires two additional mold making steps, the first of which is making a rubber positive master cast using the new rubber mold, the second step is making a plaster piece-mold taken off the rubber positive.

    Shown below is the rubber positive that was poured in last night- the remaining cavity not filled with that amber colored rubber will be filled with plaster to save on expensive rubber since only the face is the important portion of the design.

    The amount of rubber shown in the mold was 2 gallons total, and this cost just about $200, so it’s easy to see how much it would cost to fill this the rest of the way up with this rubber!

    Once this rubber is cured and the cavity filled to the top with plaster, it’s taken apart and the plaster and rubber master positive can be used to make the plaster piece mold.

    This is similar to the way this was done for the originals my work is based on, though the final plaster piece molds are made identically to the way they were for these pieces back in the 19th  and early 20th century when these ornaments were used on building facades.

    All of the Sullivan/Elmslie designed terracotta ornaments were made exactly the way I make them- hand-pressed clay into plaster piece-molds, and then final finishing and detailing all done by hand one at a time.

    model from the James W. Scoville, Adler & Sullivan designed, Chicago building
  • Another model from the James W. Scoville, Adler & Sullivan designed, Chicago building

    The Virginia Museum of fine art  which has a few artifacts from this building also has at least one of these lunettes with a very similar design on it as the spandrel panels have.

    I like the shape of it as well, I have no plans to but easily could make the surrounding flat pieces for it if a client wanted them.

    I will be working on this model very soon, of course it takes time and this type of work is done when I have time, and more time for the various mold making processes to get done, but progress photos will come along here soon enough.

    This would most likely be priced around $325 in fired red terracotta.

    The museum has their artifact sized 18-1/4″ x 18-1/2″ and 4″ deep, this size would fit into my existing kiln, so this is another design I can keep my model of full sized like the originals and offer both interior cast-stone this size but less deep to hang ON the wall, and hand-pressed terracotta which will be slightly smaller due to the shrinkage of the clay but made a nominal  3″ deep which can be additionally used outdoors in the garden or embedded into a brick or stone wall of any type.

    1973 HABS photo before demolition (Courtesy of the Library of Congress)



    Jame scoville building elevation view (Courtesy of the Library of Congress)

    Dankmar Adler, 1844-1900
    Louis Sullivan, American, 1856 – 1924 (Architects) Northwestern Terra Cotta Co., probably modeled by, Kristian Schneider  1884-1885

    A photo of the grey painted artifact in the museum which is not on public view at the museum, appears here; https://www.vmfa.museum/piction/6027262-7946023/

    The artifact they have is a gift of the Metropolitan Museum of Art.
