Grotesque Keystone Nr 285
Kiln Fired Terracotta


Copyright © 2020 Randall’s Urban Sculptures
Terracotta & Cast Stone Gargoyles, Keystones, Sullivanesque, Custom Commissions By Wolff
Copyright © 2020 Randall’s Urban Sculptures
To purchase an interior cast of this;
In the lobbies, eight bronze reliefs designed by Rene Paul Chambellan are inset in the walls above ornate bronze radiator grilles. The bronze ornamentation continues in the waves on the floor, mailboxes, and elevator doors extending the general Art Deco style from the outside in. Initially a dominant landmark in the midtown skyline, the building had an open air observatory on the 54th floor.
Having been surpassed in height by a number of buildings, most notably the Chrysler Building located across the street, the observatory has been long closed. The self-supporting tower atop the building is the original transmission site for WQXR-FM from 1941 to the 1960s. Irwin S. Chanin, was a self-made man – from poor immigrant to successful architect & developer. He wanted the building that bore his name to represent everything America and New York City meant for him, and could also be for all those that chose to seek it.
He had Rene Chambellan work with Jacques Delamarre to develop a set of eight relief sculptures to represent this. There were two lobbies in the building, each have four plaques, all of which were to represent a theme of “New York, the City of Opportunity.” four of the plaques represent the Mental Life and four of them represent the Physical Life of the individual.
Each plaque had a title:
Mental Life: “Enlightenment,” “Vision,” “Courage,” “Achievement” Physical Life: “Endurance,” “Activity,” “Effort,” “Success”
HISTORY of the sculptor whose artwork appears on the building;
Rene Paul Chambellan (September 15, 1893 – November 29, 1955) was an American sculptor, born in West Hoboken, New Jersey. Chambellan studied at the Ecole des Beaux-Arts and the Academie Julian in Paris and with Solon Borglum in New York City. Chambellan specialized in architectural sculpture. He was also one of the foremost practitioners of what was then called the “French Modern Style” and has subsequently been called Art Deco. He also frequently designed in the Greco Deco style. Rene had many historic and significant buildings under his belt as a sculptor, including the NY Daily News Buildings, Buffalo City Hall, NY Life insurance building. Rene also designed medals, bronze doors, and the historic city seals and other artwork adorning the old Miller Highway (West Side Highway) that ran along Manhattan’s West side along the North (Hudson) River until a collapse in 1973 resulted in it’s eventual removal.
I always found these hyper-masculine figures in this era to be interesting, more so with the abstractness of this in Art Deco. Chambellain’s grandson Bob was working on a book several years ago, and a looks at the web site http://www.louisvilleartdeco.com will bring forth a treasure trove of studio photos and more information on Mr Chambellain and his many works; Rene Paul Chambellan – One of Art Deco’s Greatest Sculptors. by Jim Patterson, with Bob Perrone. Artists played a critical part in architecture during the late ’20s, through the ’30s, and up to WWII. Art Deco buildings wouldn’t have their edgy character without the ornamentation supplied by these artists. A number of talented artists contributed to making each building into its own art gallery of sorts. Metalworkers, muralists, sculptors, designers…. They all played a key part. This feature article is about one of my favorite artists – sculptor Rene Paul Chambellan (pronounced with the “sh” soft sound: “Sham -bell – an”).
Copyright © 2019 Randall’s Urban Sculptures
To purchase an interior cast of this sculpture;
In the lobbies, eight bronze reliefs designed by Rene Paul Chambellan are inset in the walls above ornate bronze radiator grilles. The bronze ornamentation continues in the waves on the floor, mailboxes, and elevator doors extending the general Art Deco style from the outside in. Initially a dominant landmark in the midtown skyline, the building had an open air observatory on the 54th floor.
Having been surpassed in height by a number of buildings, most notably the Chrysler Building located across the street, the observatory has been long closed. The self-supporting tower atop the building is the original transmission site for WQXR-FM from 1941 to the 1960s. Irwin S. Chanin, was a self-made man – from poor immigrant to successful architect & developer. He wanted the building that bore his name to represent everything America and New York City meant for him, and could also be for all those that chose to seek it.
He had Rene Chambellan work with Jacques Delamarre to develop a set of eight relief sculptures to represent this. There were two lobbies in the building, each have four plaques, all of which were to represent a theme of “New York, the City of Opportunity.” four of the plaques represent the Mental Life and four of them represent the Physical Life of the individual.
Each plaque had a title:
Mental Life: “Enlightenment,” “Vision,” “Courage,” “Achievement” Physical Life: “Endurance,” “Activity,” “Effort,” “Success”
HISTORY of the sculptor whose artwork appears on the building;
Rene Paul Chambellan (September 15, 1893 – November 29, 1955) was an American sculptor, born in West Hoboken, New Jersey. Chambellan studied at the Ecole des Beaux-Arts and the Academie Julian in Paris and with Solon Borglum in New York City. Chambellan specialized in architectural sculpture. He was also one of the foremost practitioners of what was then called the “French Modern Style” and has subsequently been called Art Deco. He also frequently designed in the Greco Deco style. Rene had many historic and significant buildings under his belt as a sculptor, including the NY Daily News Buildings, Buffalo City Hall, NY Life insurance building. Rene also designed medals, bronze doors, and the historic city seals and other artwork adorning the old Miller Highway (West Side Highway) that ran along Manhattan’s West side along the North (Hudson) River until a collapse in 1973 resulted in it’s eventual removal.
I always found these hyper-masculine figures in this era to be interesting, more so with the abstractness of this in Art Deco. Chambellain’s grandson Bob was working on a book several years ago, and a looks at the web site http://www.louisvilleartdeco.com will bring forth a treasure trove of studio photos and more information on Mr Chambellain and his many works; Rene Paul Chambellan – One of Art Deco’s Greatest Sculptors. by Jim Patterson, with Bob Perrone. Artists played a critical part in architecture during the late ’20s, through the ’30s, and up to WWII. Art Deco buildings wouldn’t have their edgy character without the ornamentation supplied by these artists. A number of talented artists contributed to making each building into its own art gallery of sorts. Metalworkers, muralists, sculptors, designers…. They all played a key part. This feature article is about one of my favorite artists – sculptor Rene Paul Chambellan (pronounced with the “sh” soft sound: “Sham -bell – an”).
Copyright © 2019 Randall’s Urban Sculptures
The unassuming and dimunitive little Otis elevator call button was a simple but artistic design used for many years by Otis elevator Co., with their laurel wreath encircling their name emblazoned over a globe logo, and surrounded by a classical egg & dart molding. This particular artifact has only one button- the “up” button as it was originally located in the basement, not only was it located in a lowly, damp basement, but that basement happened to be the one that was under the 1867 Broadway Central Hotel (BCH) once located on several lots fronting 150 feet of Broadway with the main entrance at 673 Broadway, NY City.
It was originally named “The Grand Central Hotel”
The site was originally a hotel and theatre known as; The Lafarge House. Edwin Booth appeared there as did other well known persons, this building was destroyed in an 1854 fire, it was rebuilt, and destroyed in yet another spectacular fire!
In March 1869 the property sold at public auction by the heirs of the Lafarge estate to E. S. Higgins, Esq., who was recorded fourth on the list of wealthy citizens for the sum of $1,000,000. This gentleman was determined to erecting the largest hotel in the country with 630 rooms.
The hotel had 350 workmen building it, 7 acres of carpeting, 4,000,000 bricks were used.
The hotel was the scene of Railroad magnate Jim Fisk’s shooting, and in the early 1970s when the hotel was a welfare hotel and deteriorated greatly, the rear of the hotel was converted into the Mercer Arts Center, a multi theatre and arts complex by Sy Kaback.
On a late summer day in August 1973, a section of the 8 story facade and the floors behind it all collapsed onto Broadway- killing several people, hundreds of patrons who were due to attend the theatres that very evening escaped the disaster!
The buck stopped with the city who was notified about a serious crack and “bulge” in the facade wall, and other violations, they sent an inspector out, and despite requiring corrective action within 10 days, nothing was done and the city didn’t bother following up! Of the 308 residents, 4 residents were killed, 2 dogs survived days trapped in the rubble, one was adopted by the fire department. Consider that just between Nov 1970 and March 1973 there were 450 building and health code violations recorded in the hotel. Violations included illegal alterations, leaks in the plumbing, fire alarm malfunctioning, and of course the crack and bulge in the facade wall to name but a few.
On Jan 26, 1973 the Buildings Dept was notified by an engineer doing structural renovations at the hotel that brickwork was bulging out of bond, the next day an inspector found a crack stretching from the 2nd to the 6th floor separating the bearing and facade walls. What was happing there was the facade was moving away from the bearing wall in the center where the 2 walls connected to one another which ran East to West from Broadway to Mercer St in the back.
The inspector decided to call in the chief inspector, but neither wrote an official report! They did not issue a summons or record an official violation either, they “informed” the hotel manager who promised to take immediate action.
It wasn’t until Feb 22nd- almost a month later that it was re-inspected after “officially hazardous” conditions were first discovered, a violation was recorded then. It wasn’t even re-inspected again until March 29, NO repair work had even been done despite the 10 day law.
Still nothing happened as April, May, June and July rolled on by while a major crack from the 2nd to the 6th floor went un-repaired, then Friday August 3rd came around and residents reported hearing strange noises coming out of the walls, the Buildings Dept emergency number was called by Mercer Arts owner Sy Kaback and his wife over the weekend and they told them to call on Monday! The noises became worse and plaster was falling from the ceilings in places, so at least one if not 2 callers called the fire department and they were told that “strange noises are coming out of the walls” the person at the fire dept asked the caller if they had been drinking… amazingly, in the middle of that call with the Kabacks the line went dead because that was when the collapse happened and a large section of the stone and brick facade wall fell out onto Broadway and the sidewalk.
I communicated around 1998 or so with the owner of the Mercer Arts Center: Sy Kaback, and his wife, who together operated several live performance theaters in the back of the hotel, Sy’s wife described the scene to me and her call to the fire dept.
On the day of the collapse, the Mercer Arts Center was expecting a crowd of patrons for some live performances, and the Kabacks were gravely concerned about the falling plaster and cracking and other noises in the walls, they tried calling city agencies to get a go or no go because if they cancelled the event they would have been sued for breach of contract, OTH if they had a few hundred patrons in their theaters and something happened- they would be liable.
As it happened, the collapsed cccurred just hours before the events were to begin!
After the collapse, an emergency demolition was begun to demolish the entire building, that was when this then 13 year old author discovered the site and I began exploring it top to bottom during the demolition, the little Otis elevator plate was discovered after crawling down thru a hole in the rubble to a debris filled hallway in front of the elevator. The button plate and a number of other artifacts came home with me over the many weeks of demolition, and some of these will be pictured here as well.
But let us go back before the collapse, way back, back before the hotel was built and to the LaFarge House, this illustration will perfectly show my theory, which to my knowlege no one else has hiterto come up with;
The drawing on the left in the split image would have been done before the fire on January 8, 1854, Metropolitan Hall and the adjoining La Farge House were destroyed by the fire; but the hall was rebuilt and opened in the following September, under the name of the New York Theatre and Metropolitan Opera House.
Towards the close of the same year the house was remodelled and called Laura Keene’s Varieties; and in the following year, it became Burton’s Theatre. In 1859 it became the Winter Garden and Conservatory of the Arts, the first part of the title being that by which it is best known and which it retained until its total destruction by fire, March 23, 1867.
On the left is the old LaFarge House, on the right is the Broadway Central Hotel built on the site after the LaFarge burned to the ground in a spectacular fire, those words “burned to the ground, spectacular fire” are key to my theory, because while the building burned down, the stone and brick facade REMAINED largely intact, notice the red circles showing the very same unique window surrrounds on the LaFarge facade, a classical tripointed alternating with dioclesan pedimented windows, as well as the center entrance treatment. In other words what I strongly believe they did, was they REUSED the LaFarge’s facade and where it’s 6th floor shorter windows and cornice were- they removed the cornice, added a larger more dramatic cornice plus three more floors on top and a large central tower with a mansard roof!
So when we consider this, remember- the LaFarge facade was built for a SIX story building, it was exposed to a massive fire in the rear, collapse of the floors behind it, no doubt millions of gallons of water soaked into it’s footings and surrounding earth. Add now almost 70 years of subway trains vibrating it underneath, and an illegal doorway was cut thru the East-West brick bearing wall behind it in the basement, factor in the additional weight of three more floors and it should be no surprise it finally gave out.
The failure can be traced right back to the big fire, water, and adding three more floors on top of it causing instability and settling.
Probably THE earliest photo of the hotel, on the original image it is clear that final finishing work was still being done in the rooms behind the windows whose upper half is pushed down fully open, that dates it to about 1869, the horse-drawn carriages were in use before the trolly tracks came in 1892. With a larger scan of one part of the above image reproduced below, let’s focus on the remains of a painted SIGN clearly visible on the wall that says; “–ARGE HOUSE”;
THIS is where the original LaFarge House side wall left off and the new brickwork added to the left and above it, that one arch top open window’s lower half is exactly where the short square windows of the LaFarge were located, and that elaborate cornice with it’s large scrolled brackets is where the plainer LaFarge cornice was.
Some other artifacts from the hotel include a Tycos mercury thermometer from a basement
hot water tank, china and silverware with the hotel logo, and an ACME fire alarm box.
Sullivanesque panel, after historic artifacts once on the James W Scoville building, Chicago.
I am excited to offer this interesting Sullivanesque 1884 design after the artifacts that were connected to Adler & Sullivan, George Elmslie, Kristian Schneider, and once installed on the James W Scoville building in Chicago.
Those involved in creating the original 1884 Chicago design are said to have included;
Dankmar Adler
Louis Sullivan
George Grant Elmslie
Kristian Schneider
Significance: The James W. Scoville factory building, designed by Adler & Sullivan contains three different designs belonging to the transitional period (1880 and 1890) of Louis Sullivan’s architectural ornament. This structure was the best and most ornamental of all the few remaining factory buildings by Adler & Sullivan.
Some of the original historic artifacts that were salvaged from the 1973 demolition are in the Virginia Museum of Fine Arts (VMFA) and were gifted by the Metropolitan Museum, a set of three of these artifacts appears in the St Louis Art Museum’s web site of their holdings.
The artist working on the master clay model of this design from photos and known measurements
How the original artifacts were originally used on the Scoville building’s facade
One of my interior cast stone casts in the aged buff yellow finish shown above, the mold for casting was taken directly from the original clay model
The terracotta version is;
Weight: 35#
To purchase the fired terracotta version, the link is here;
In addition to the new “Artifact of the month” feature in which I detail the story, history and more of each architectural artifact in my personal collection, I decided to start a new “Sculpture of the week” feature which will showcase one of my sculptures each week.
Nortown theater Art Deco D7
Someone recently mentioned they “hate” terracotta because they had some in the garden that “fell apart,” please do not confuse THAT type of mass produced Chinese -JUNK sold for $9.95 at Walmart with fine hand-made sculpture! The reason their “terracotta” in the garden fell apart was that it was poorly made, poorly fired at the lowest possible temperature to save time and money, and the item was sold in garden stores cheap. This stuff is NOT real terracotta, I even suspect some of it is just red tinted plaster. Due to clays’ shrinkage, the terracotta version of my design is slightly smaller than the interior cast-stone version. NOTE: on the production time, I will try to keep a few of these on hand to ship quickly, however, if I happen to run out it WILL TAKE 3 weeks to make and dry one before it can be fired, 2 weeks of that is for the slow drying out process which can’t be rushed.
SIZE: Nominal 12-1/8″ high by 19-3/4″ wide, 2″ deep. WEIGHT: 29#.
These are priced $259 and include delivery to the lower 48 states, I only work with red terracotta.
https://www.urbansculptures.com/cart/product/nortown-theater-art-deco-nr-d5-terracotta/
Copyright © 2014 Randall’s Urban Sculptures
Hope to finally finish this Sullivanesque pier capital to-morrow, the clay is getting pretty firm despite being covered with plastic and spritzed with water, so it needs to be finished now.
It’s amazing how much time this design takes, probably twice what other models I’ve done have taken, there’s a lot of detail packed in on the surface!
I still have 5 of the 8 “squares” along the sides- the 4 on the right and the bottom left one to finish refining and cleaning up and then it’s done.
Now that the model is done it is drying out.
There is an 11 minute long timelapse video showing the whole modelling process on this start to finish over 3 months;
Now I have the first hand-pressed red terracotta architectural leaf blocks done and ready to start drying, this will shrink somewhat and I have not priced these yet, but pretty soon I will know the exact size it will wind up, and a price determined.
These would be very nice for accents or even in a row as a frieze band, they will be kiln fired, so they can be embedded into a brick or stone wall, or otherwise used outdoors.
A timelapse video showing how these are made;
I decided to make a mold of one of these ca 1880 leaf blocks that came from a frieze band on a mansion in Newark NJ that was demolished. It’s a nice little design and it will be quick and easy to make these in red terracotta like the original.
Now it will have to dry out for a couple of weeks before I can use it.
This is exactly what they used in ca 1880 to make the originals, though it was about 5-10% larger.
The design could be a styled boxelder tree leaf, there’s not a lot of trees that have leaves like the terracotta block has, but there are a few, of which the boxelder appears to be most similar;
After 4 weeks of drying I placed the pressed clay Chicago James Scoville building “Sullivanesque” panel in the kiln and turned ‘er on.
I changed the program on the controller slightly for this piece by bumping the temperature up and adding 10 minutes soak time to when the kiln reaches that temperature.
About 37 hours from now the kiln will shut off and take half a day to cool down before I see what I get.
Meanwhile, here it is sitting in the kiln when I turned it on. The light yellow colored deals touching the back of the panel are shelf posts and I placed them on both front and back so that should the panel want to tip- it can’t.
The two red pyramid haped deals resting on top of the posts are called “cones” and they will partially melt and bend over at specified temperatures each uniquely is formulated to do that at, so they tell me if the kiln got hot enough- what it was set to, or too hot- hotter than I set it for.
In this case there’s a cone 1 which bends over at 2,079 degrees F and a cone 2 which bends over at 2,088 degrees F, and yes they are THAT accurate that 9 degrees in a furnace that is over 2,000 degrees can be measured accurately.
The temperature and soak time much like baking a cake or making toast in a toaster- also affects the final color and “doneness” of the terracotta. This clay I use is a brick red that as the temperature goes above that cone 1 starts to turn brown- it can take cone 5 (2,167 degrees) at which point it turns a dark chococate brown! I’ve never gone higher than cone 1 but it would be interesting to experiment with a smaller piece.
So far I’ve shown the modelling process, the hand-pressing process and now the kiln firing process will wrap it all up in a sort of educational “How the architectural terracotta was made” in Sullivan’s day and before.
I pressed the first LS2 panel today, it took 60 pounds of clay, the sculpture will need to firm up a little and dry a little before I can finish cleaning up and refining the surface details.
It takes about 2- 3 weeks of slow, careful drying of pressed clay sculptures of this size before they can be kiln fired.
The firing process in an electric kiln takes approximately 36 hours and the high quality clay I use is fired to what is known as “Cone 1”- about 2,100 degrees F which vitrifies it nicely to become harder and less porous than standard hard bricks are.

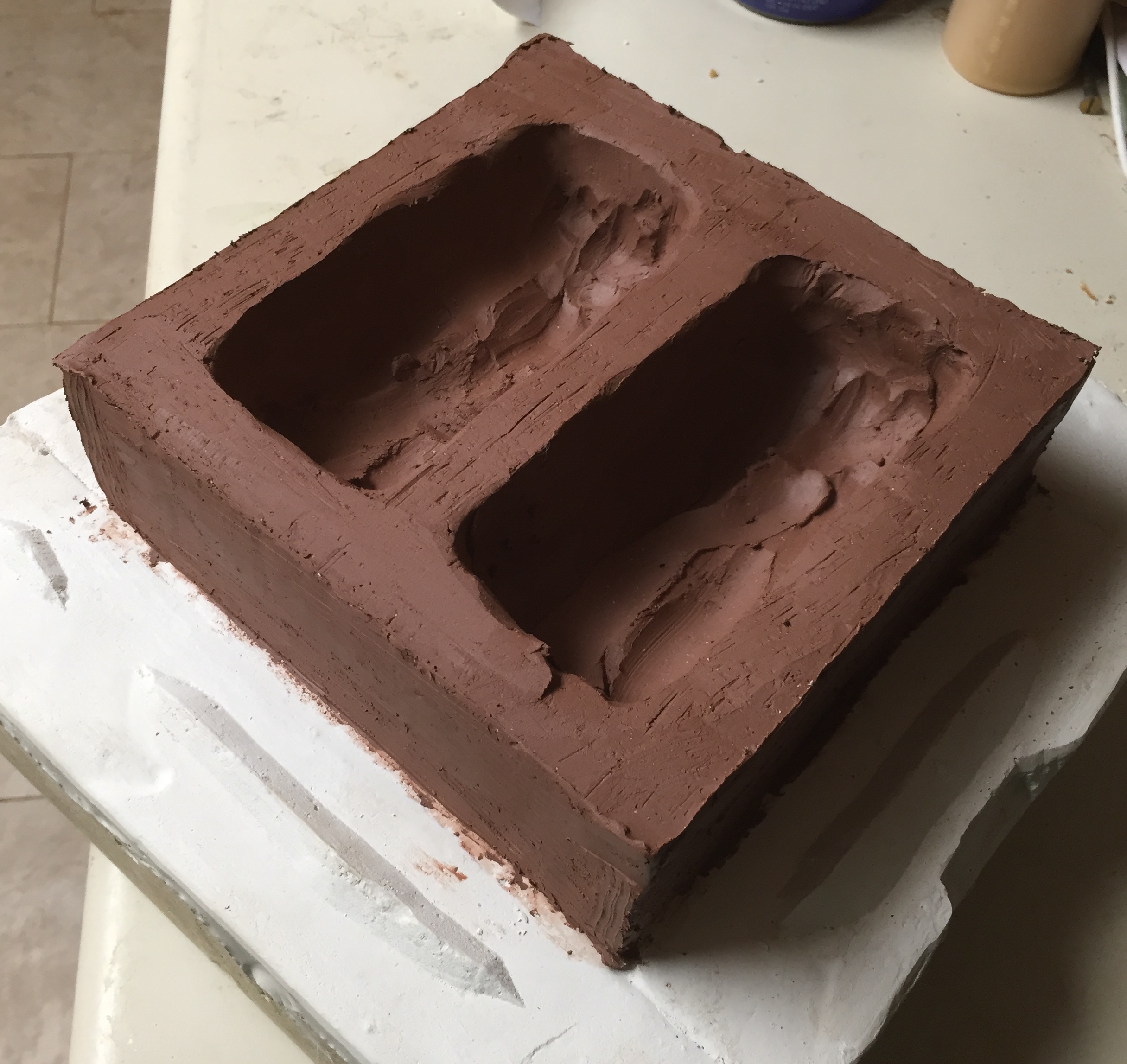

Once the sculpture was removed from the plaster mold as shown, I have to spend considerable time going over every milimeter of the surface to model-in any missing details, sharpen edges, eliminate any surface defects, mold seams etc.
Each is a signed, numbered and dated work of art.
A timelapse video of the whole process is here;
The new mold for pressing terracotta from is finally dry, it took 2 weeks in front on a box fan on high. The main base piece weighs 90#, the other 6 sections probably adds another 50# to that.
George Elmslie and Dankmar Adler’s 1884 Chicagoan James Scoville building “Sullivanesque” design is sure to be stunning in kiln fired red terracotta. There are a few originals out there, at least one is sitting in a Virginia museum, and others as well as other designs from the same building have been spotted on already sold live-auction sites after having sold for an insane $5,000- $15,000, but when people have NO lower cost options and want a particular design then they have to pay through the nose, they also have to accept whatever condition and quantity is available.
It would really suck if someone had a great design in mind for their project, but it takes 4 identical pieces and they can only find 2 at a salvage yard! That’s a common delemma whe dealing with antiques- you need 2 someone only has 1 for sale, or you find 2 but one is so damaged it’s almost unusable.
That’s where I have an advantage, because if a client needs 4 of these or 44 of them, they could have them, and at a far more reasonable cost! At this time the interior-cast stone version of this panel is priced at $229, shipped to any of the lower 48 states;
WEIGHT: Nominal #35
When these are pressed from terracotta, due to clay shrinkage, the fired terracotta version will be slightly smaller- approx 10-15%, so those will wind up around 19″ high and 11-1/2″ wide which will be a nice residential scaled sculpture that can be displayed indoors or outdoors, it can be embedded into a brick, concrete or stone wall.
Making progress on this model, here’s a couple of time-lapse videos so far, newest at the top;
1/26 Uploaded the longer video to-day, the design progress can be especially seen near the end;
The plaster-piece mold for this is done, waiting for the last section to set before taking it apart, and finishing up the last segment of a time-lapse video of it.
It took 125# of plaster and some 7 gallons of water, about half of that water will evaporate out.
It will be probably 2 weeks with fans blowing on it to dry it out enough to use for pressing the clay into.
This is exactly how the working molds were made for all of the Elmslie “Sullivaesque” terracotta, and all of the similar architectural terracotta as well.
About the biggest difference between then and now is only in my using a rubber positive copy instead of taking this plaster mold directly off the original clay model. With the rubber positive I could make additional or replacement molds from that whereas the clay original master is typically destroyed in the process.
Back in the old days these kinds of designs were typically custom made for each building job, so they tended to only need a few of each, a dozen maybe. If they made terracotta cornices and windowsills, these were typically made by extruding the clay thru a die under mechanical pressure for small ones, for larger ones they used a system of running a template along the clay which was the same way they did the elaborate plaster ceiling crown moldings- shaped in place using wood runner strips and templates.
